Ventury flow meter works on the principle of Ventury Effect. A reduction in fluid pressure occurs when a fluid flows through a constricted section of pipe. This happens mainly due to increased flow velocity because of reduced cross section.

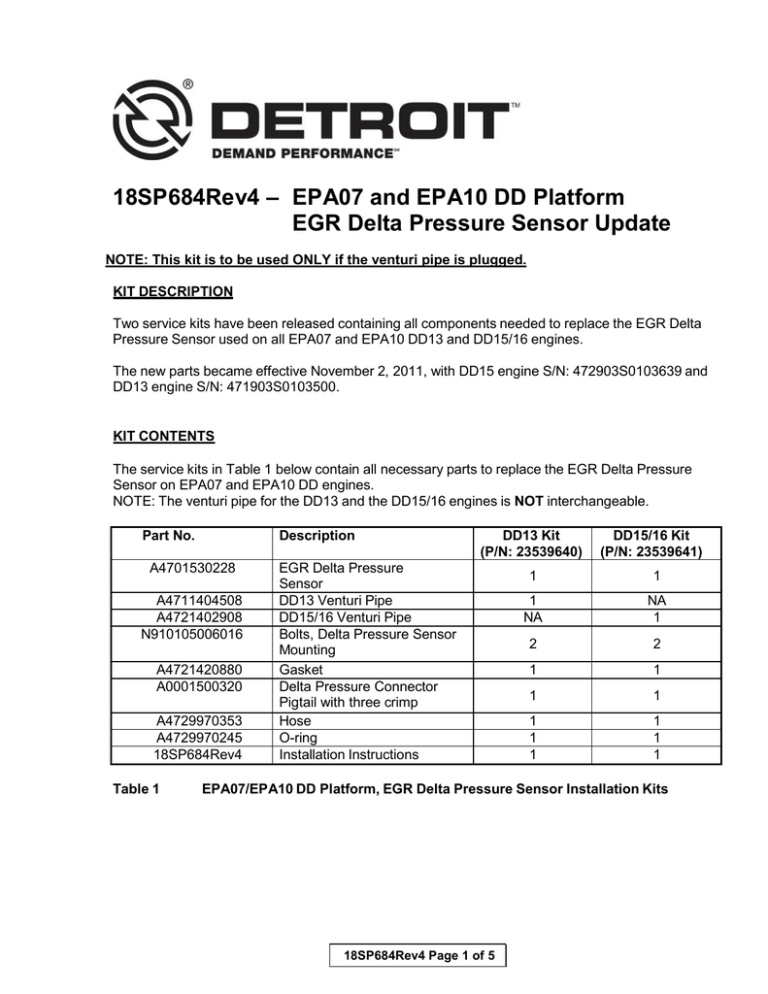

Install new venturi pipe (DD13 P/N: A or DD15/16 P/N: A) onto the EGR crossover pipe with two bolts. Torque to 30 Nm (22 lbft). Before the hose is installed on the mixer pipe, ensure there are no sharp edges that may cut the hose liner. Inspect the EGR delivery pipe delta P pressure ports for blockage. If excessive build up or blockage is found, clean the venturi pipe and reinstall the sensor, Go to step 24. If no damage is found, Go to step 7. Remove EGR cooler hot pipe, EGR crossover tube and mixer pipe and inspect for excessive build up or blockage.
Venturi Flow Meter Installation
Reduction in pressure is related to actual fluid velocity as well as density of the fluid. Pressure is measured at normal cross section as well as constricted cross section, to get the differential pressure. Based on this differential pressure, fluid velocity and hence volumetric flow rate can be determined.
Ventury Flow MeterStraight Length Requirements
Terminology
Diameter (D) = nominal Pipe Size
Example:
13 Diameters of 6″ pipe = 78″
13 Diameters of 10″ pipe = 130″
Beta = (Bore I.D./Pipe I.D.)

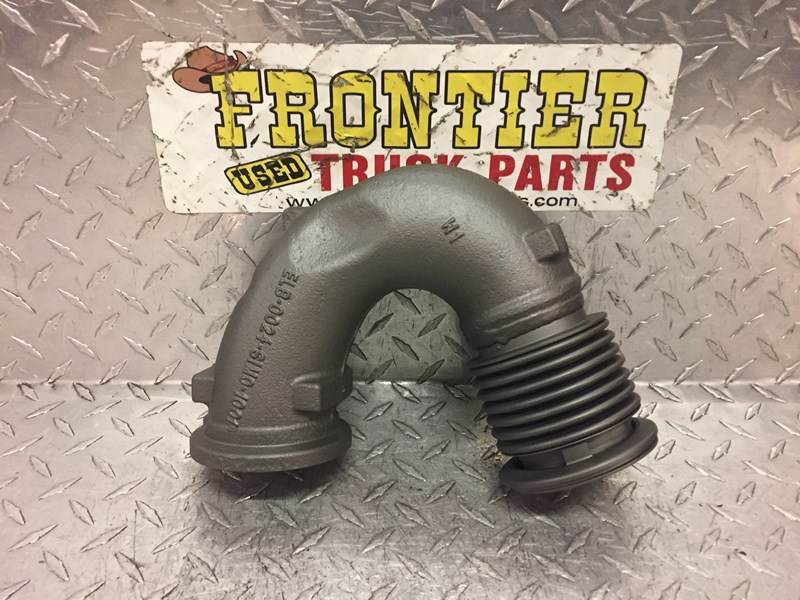

Venturi Pipe Dd15 Specifications
Bore is the smallest diameter of an orifice or nozzle
Up = Upstream Diameters
Down = Downstream Diameters
Two Elbows, > 10 Diameters, Fittings in Different Planes
When Beta is both 0.5 or 0.7 , upstream straight lenght shall be minimum 21D and downstream straight length shall be minimum 2D.
Two Elbows, < 10 Diameters, Fittings in Different Planes
When Beta is both 0.5 or 0.7 , upstream straight lenght shall be minimum 21D and downstream straight length shall be minimum 2D.
Reducer or Expander (Unless Another Upstream fitting Needs More)
If upstream has a reducer, then if Beta is 0.5, upstream straight length shall be minimum 5D and downstream shall be minimum 2D. Also in this case if Beta is 0.7, upstream straight length shall be minimum 8D and downstream shall be minimum 4D.
If upstream has an expander, then if Beta is 0.5, upstream straight length shall be minimum 2D and downstream shall be minimum 2D. Also in this case if Beta is 0.7, upstream straight length shall be minimum 4D and downstream shall be minimum 4D.
